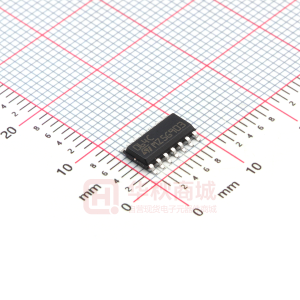

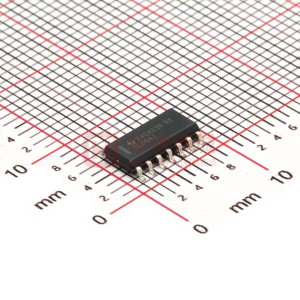

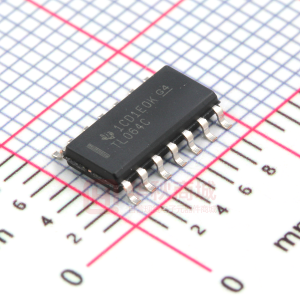

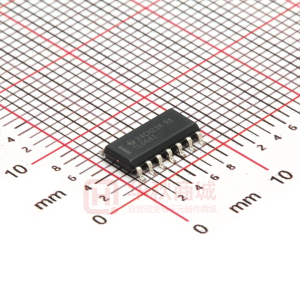

TL064 四路低功耗 JFET 输入通用运算放大器

描述

TL06x系列的JFET输入运算放大器设计为TL08x系列放大器的低功耗版本。它们具有高输入阻抗，宽带宽，高压摆率，低输入失调和输入偏置电流。 TL06x系列具有与TL07x和TL08x系列相同的端子分配。


Number of Channels (#)
Total Supply Voltage (Min) (+5V=5, +/-5V=10)
Total Supply Voltage (Max) (+5V=5, +/-5V=10)
GBW (Typ) (MHz)
Slew Rate (Typ) (V/us)
Rail-to-Rail
Vos (Offset Voltage @ 25C) (Max) (mV)
Iq per channel (Typ) (mA)
Vn at 1kHz (Typ) (nV/rtHz)
Rating
Operating Temperature Range (C)
Package Group
Package Size: mm2:W x L (PKG)
Offset Drift (Typ) (uV/C)
Features
Input Bias Current (Max) (pA)
CMRR (Typ) (dB)
Output Current (Typ) (mA)
Architecture

TL064	TL061	TL061A	TL061B	TL062	TL062A	TL062B	TL064A	TL064B
4	1	1	1	2	2	2	4	4
7	7	7	7	7	7	7	7	7
36	36	36	36	36	36	36	36	36
1	1	1	1	1	1	1	1	1
3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
In to V+	In to V+	In to V+	In to V+	In to V+	In to V+	In to V+	In to V+	In to V+
15	6	6	3	15	6	3	6	3
0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
42	42	42	42	42	42	42	42	42
Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog
-40 to 85 0 to 70	-40 to 85 0 to 70	0 to 70	0 to 70	-40 to 85 0 to 70	0 to 70	0 to 70	0 to 70	0 to 70
PDIP SO SOIC TSSOP	PDIP SO SOIC	PDIP SOIC	PDIP	PDIP SO SOIC TSSOP	PDIP SO SOIC	PDIP SOIC	PDIP SOIC	PDIP SOIC
See datasheet (PDIP) 14SO: 80 mm2: 7.8 x 10.2(SO) 14SOIC: 52 mm2: 6 x 8.65(SOIC) 14TSSOP: 32 mm2: 6.4 x 5(TSSOP)	See datasheet (PDIP) 8SO: 48 mm2: 7.8 x 6.2(SO) 8SOIC: 29 mm2: 6 x 4.9(SOIC)	See datasheet (PDIP) 8SOIC: 29 mm2: 6 x 4.9(SOIC)	See datasheet (PDIP)	See datasheet (PDIP) 8SO: 48 mm2: 7.8 x 6.2(SO) 8SOIC: 29 mm2: 6 x 4.9(SOIC) 8TSSOP: 19 mm2: 6.4 x 3(TSSOP)	See datasheet (PDIP) 8SO: 48 mm2: 7.8 x 6.2(SO) 8SOIC: 29 mm2: 6 x 4.9(SOIC)	See datasheet (PDIP) 8SOIC: 29 mm2: 6 x 4.9(SOIC)	See datasheet (PDIP) 14SOIC: 52 mm2: 6 x 8.65(SOIC)	See datasheet (PDIP) 14SOIC: 52 mm2: 6 x 8.65(SOIC)
10	10	10	10	10	10	10	10	10
Standard Amps	Standard Amps	Standard Amps	Standard Amps	Standard Amps	Standard Amps	Standard Amps	Standard Amps	Standard Amps
200	200	200	200	200	200	200	200	200
86	86	86	86	86	86	86	86	86
10	10	10	10	10	10	10	10	10
FET	FET	FET	FET	FET	FET	FET	FET	FET
