HMC7585 E-Band Upconverter SiP 81 - 86 GHz

优势和特点

• Conversion Gain: 32 dB typical
• Gain Control Range: 40 dB typical
• Saturated Output Power (P_SAT): 24 dBm typical
• Output Third-Order Intercept (IP3): 30 dBm typical
• Output Power for P1dB Compression: 23 dBm
• Built-in Power Detector
• Built-in Envelope Detector for I/Q Mismatch Correction
• Fully Integrated In Surface Mount 50-Lead 16 mm x 14 mm Package

产品详情

The HMC7585LG is fully integrated System in Package (SiP) in phase/quadrature (I/Q) upconverter that operates from 81 GHz to 86 GHz. The device uses an image rejection mixer that is driven by a 6 × LO multiplier. A variable gain amplifier followed by a medium power amplifier are added to the mixer outputs to provide a small signal conversion gain of 32 dB typical. Differential I and Q mixer inputs are provided and can be driven with differential I and Q baseband waveforms for direct conversion applications. Alternatively, the inputs can be driven using an external 90° hybrid and two external 180° hybrids for single-sideband applications.

Applications

• E-Band Communication Systems
• High Capacity Wireless Backhaul
• Test & Measurement

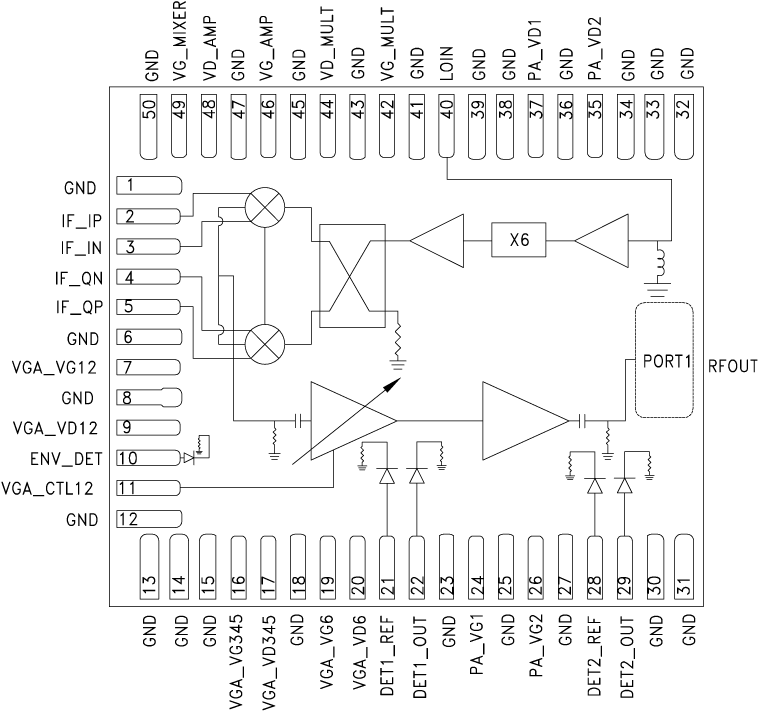

方框图
