数据： DS90LV028AQ Automotive LVDS Dual Differential Line Receiver 数据表
DS90LV028AQ是一款双CMOS差分线路接收器，专为需要超低功耗，低噪声和高数据速率的应用而设计。该器件采用低压差分信号（LVDS）技术，支持超过400 Mbps（200 MHz）的数据速率。

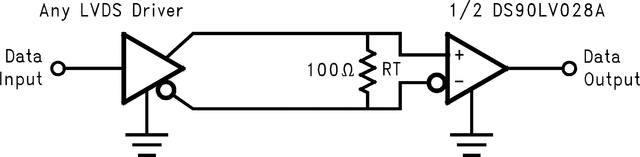

DS90LV028AQ接受低电压（典型值350 mV）差分输入信号，并将其转换为3V CMOS输出电平。 DS90LV028AQ采用流通式设计，便于PCB布局。
DS90LV028AQ和配套LVDS线路驱动器DS90LV027AQ为高速点对点接口应用提供了高功率PECL /ECL器件的新选择。
所有商标均为其各自所有者的财产。
| Device Type |
| Protocols |
| No. of Tx |
| No. of Rx |
| Input Signal |
| Output Signal |
| Signaling Rate (Mbps) |
| ESD HBM (kV) |
| Function |
| Operating Temperature Range (C) |
| Package Group |
| Package Size: mm2:W x L (PKG) |
| Pin/Package |
| DS90LV028AQ-Q1 | DS90LT012AQ-Q1 | DS90LV011AQ-Q1 | DS90LV012A | DS90LV028A | DS90LV032A | DS90LV048A | SN65LVDS2 | SN65LVDS349 | SN65LVDS9637 |
|---|---|---|---|---|---|---|---|---|---|
| Receiver | Receiver | Driver | Receiver | Receiver | Receiver | Receiver | Receiver | Receiver | Receiver |
| LVDS | LVDS | LVDS | M-LVDS | LVDS | LVDS | LVDS | LVDS | LVDS | LVDS |
| 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 2 | 1 | 0 | 1 | 2 | 4 | 4 | 1 | 4 | 2 |
| LVDS | LVDS CML LVPECL | LVTTL LVCMOS | LVDS BLVDS LVPECL | LVDS | LVDS | LVDS | LVDS | CMOS ECL LVCMOS LVDS LVECL LVPECL PECL | LVDS |
| TTL LVTTL | CMOS | LVDS | CMOS | TTL LVTTL | LVCMOS | TTL LVTTL | LVTTL | LVTTL | LVTTL |
| 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 560 | 150 |
| 8 | 8 | 8 | 2 | 7 | 4.5 | 10 | 9 | 15 | 8 |
| Receiver | Receiver | Driver | Receiver | Receiver | Receiver | Receiver | Receiver | Receiver | Receiver |
| -40 to 125 | -40 to 125 | -40 to 125 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| SOIC | SOT-23 | SOT-23 | SOT-23 | SOIC WSON | SOIC TSSOP | SOIC TSSOP | SOIC SOT-23 | TSSOP | MSOP-PowerPAD SOIC VSSOP |
| 8SOIC: 29 mm2: 6 x 4.9(SOIC) | 5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 8SOIC: 29 mm2: 6 x 4.9(SOIC) See datasheet (WSON) | 16SOIC: 59 mm2: 6 x 9.9(SOIC) 16TSSOP: 32 mm2: 6.4 x 5(TSSOP) | 16SOIC: 59 mm2: 6 x 9.9(SOIC) 16TSSOP: 32 mm2: 6.4 x 5(TSSOP) | 8SOIC: 29 mm2: 6 x 4.9(SOIC) 5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 16TSSOP: 32 mm2: 6.4 x 5(TSSOP) | 8MSOP-PowerPAD: 15 mm2: 4.9 x 3(MSOP-PowerPAD) 8SOIC: 29 mm2: 6 x 4.9(SOIC) 8VSSOP: 15 mm2: 4.9 x 3(VSSOP) |
| 8SOIC | 5SOT-23 | 5SOT-23 | 5SOT-23 | 8SOIC 8WSON | 16SOIC 16TSSOP | 16SOIC 16TSSOP | 5SOT-23 8SOIC | 16TSSOP | 8MSOP-PowerPAD 8SOIC 8VSSOP |
