Spectrogon超短脉冲压缩反射衍射光栅

型号： PC

--- 产品详情 ---

Spectrogon超短脉冲压缩反射衍射光栅

上海屹持光电提供的Spectrogon超短脉冲压缩反射衍射光栅（Reflection Diffraction Grating for Pulse Compression）具有高效率特性，可设计用于760nm-1600nm脉冲压缩等各种光学应用。






订购Spectrogon超短脉冲压缩反射衍射光栅时，请使用以下标准型号格式：

PC1200-W-H-Thk -1550 (TM/-1)-10°

-  PC--代表脉冲压缩

-  1200--凹槽密度（凹槽频率），单位为  grooves/mm

-  W--与光栅槽平行的以mm为单位的宽度尺寸

-  H--垂直于光栅凹槽的长度尺寸，单位mm

-  Thk--毛坯厚度（mm）

-  1550--所需的优化波长1550nm。也可以指定一个或多个峰值波长范围

-  TM / -1）--光栅的理想偏振态和衍射级，TM极化意味着电矢量垂直于光栅凹槽，对应于P极化。还可以指定TE或者平均值（TM + TE）/ 2

-  10°--恒定偏差角10°，是光栅应优化的角度范围，也可以指定恒定入射角 。




涂层材料：λ> 750 nm的标准金涂层（Au）。

标准基材：光学玻璃K4A或N-ZK7，其他基材材料可选

长宽高公差：W/H标准公差：±0.2 mm，Thk标准公差±0.5 mm。透光孔径效率：CA>90％。

目前可提供的Spectrogon超短脉冲压缩反射衍射光栅标准尺寸有：



25 x 25 x 6 mm58 x 58 x 10 mm
30 x 30 x 6 mm64 x 64 x 10 mm
30 x 64 x 10 mm90 x 90 x 16 mm
30 x 75 x 16 mm110 x 110 x 16 mm
30 x 110 x 16 mm100 x 140 x 20 mm
50 x 50 x 10 mm120 x 140 x 20 mm
50 x 110 x 16 mm如有其他规格要求，请联系销售





典型效率曲线：

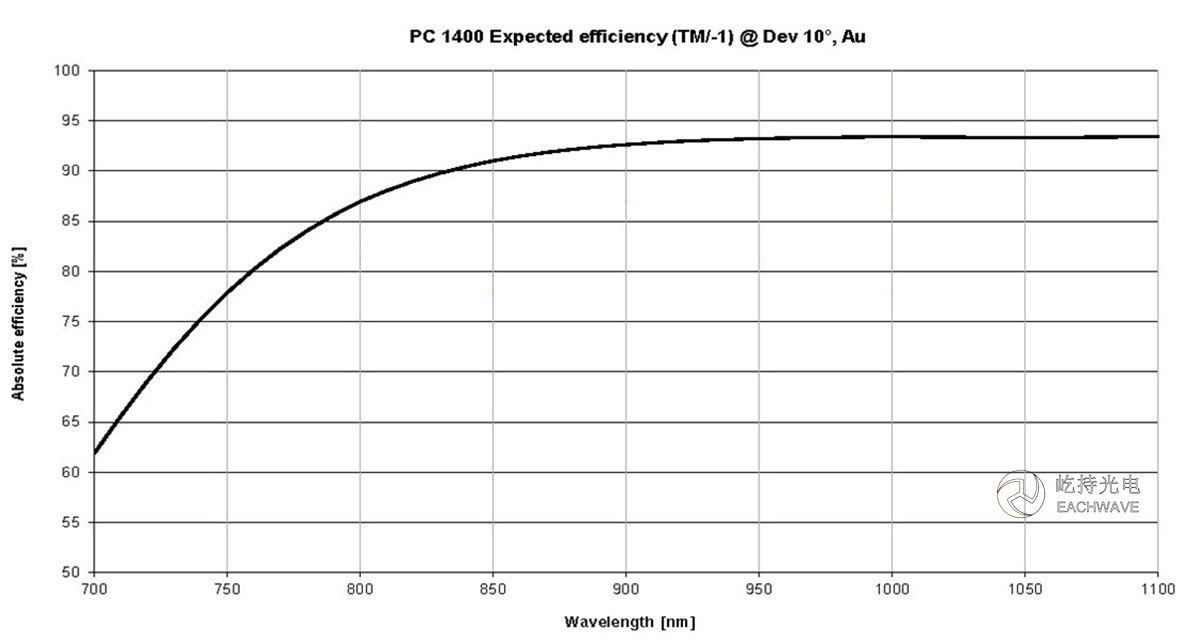

PC1400-1030：

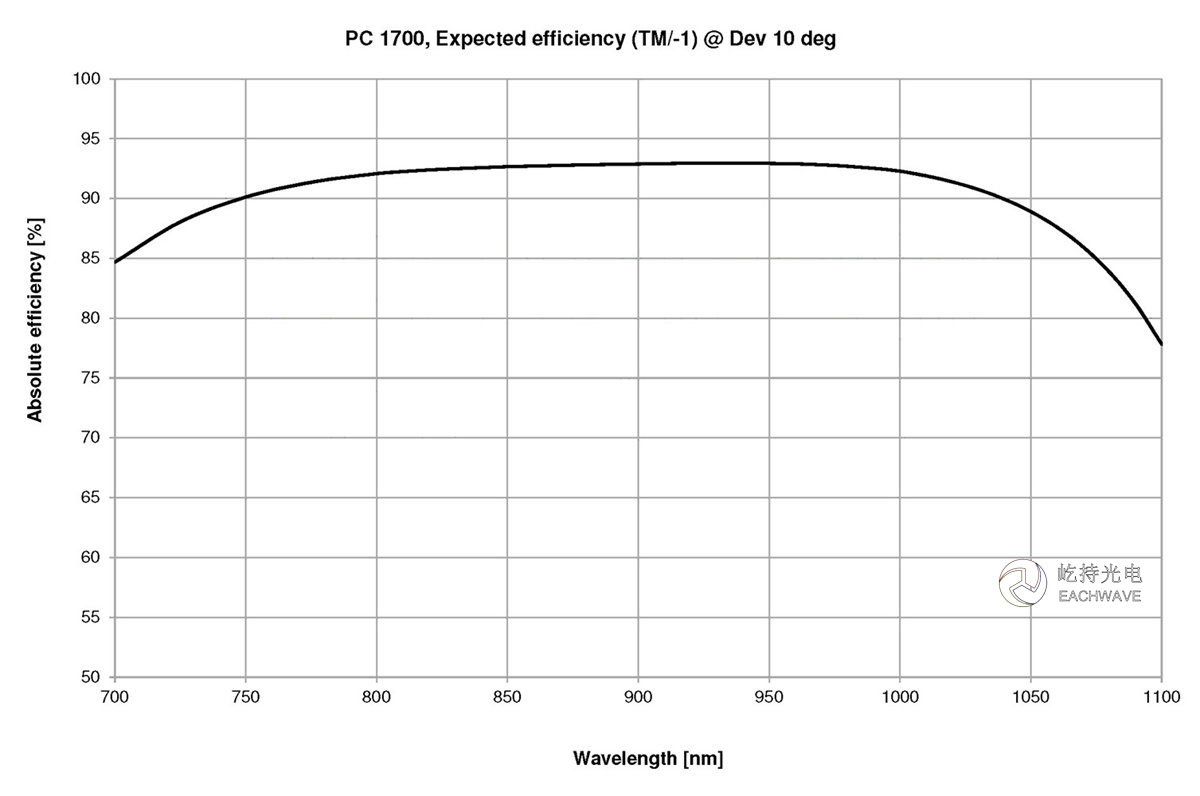

PC1600-1030：

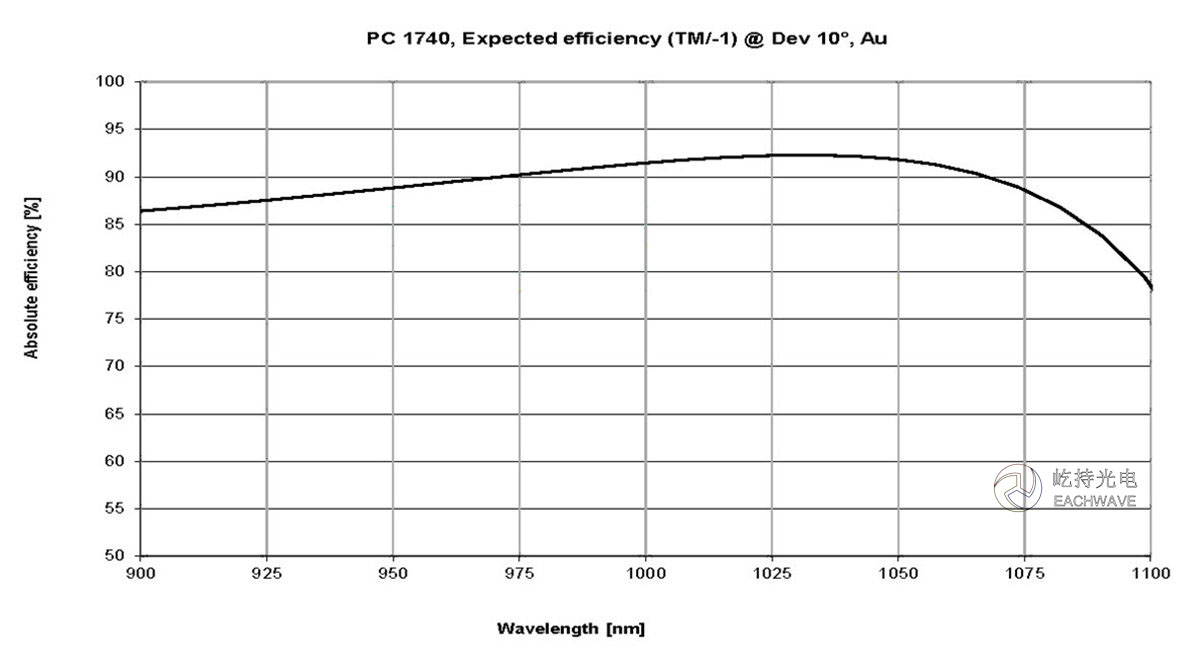

PC1740-1030：

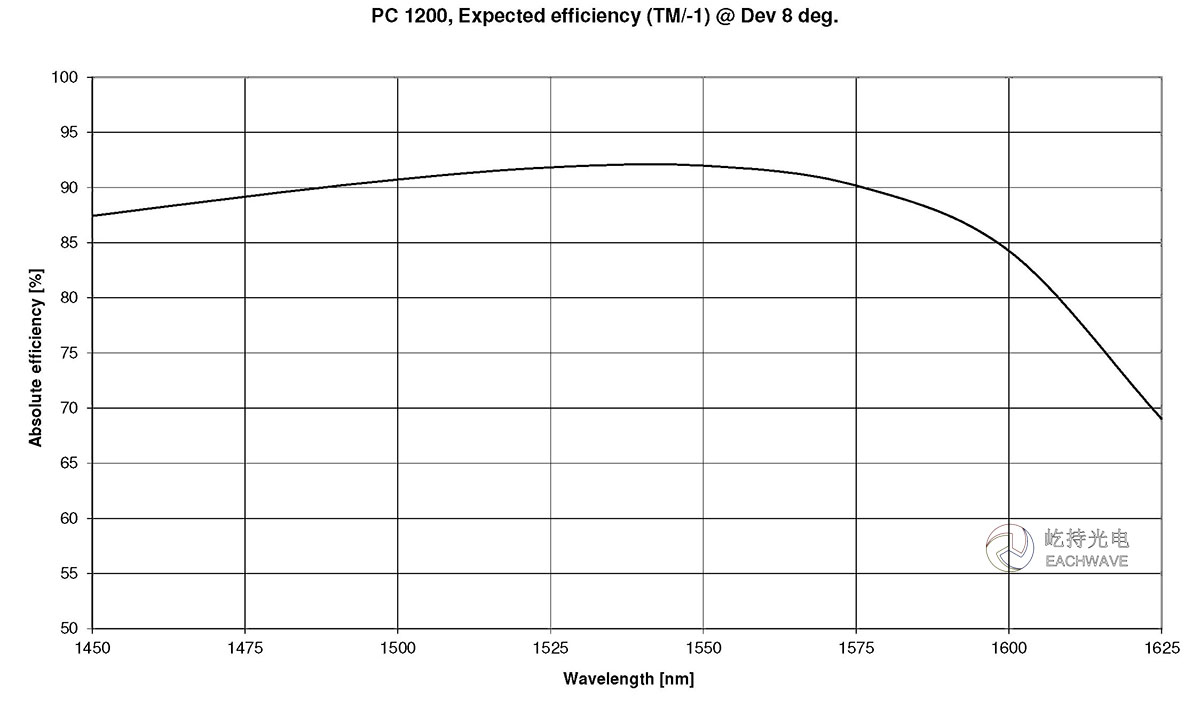

PC1200-1550

典型参数规格：



编码

规格

波长 (nm)

偏差角Deviation (Deg)

最低效率% (TM/-1)

715.704.400

PC 0300 50x50x10 NIR

800

8

25



715.704.310

PC 0600 25x25x6 NIR

800

8

29

715.704.550

PC 0600 30x30x6 NIR

800

8

29

715.703.080

PC 0600 30x30x6 1550 nm

1550

10

90

715.701.890

PC 0600 50x50x10 NIR

1600

16

90

715.703.560

PC 0600 50x50x10 1550 nm

1550

10

90

715.707.500

PC 0600 50x50x10 1550 nm (Z)

1550

10

90

715.705.510

PC 0600 50x50x10 NIR

2450

10

90

715.707.120

PC 0600 50x110x16 1550 nm (Z)

1550

10

90

715.701.910

PC 0600 50x110x16 NIR

1600

16

90

715.706.430

PC 0600 110x110x16 NIR

2450

10

90

715.706.880

PC 0600 120x140x20 NIR

2450

10

90

715.707.230

PC 0600 120x140x20 NIR (Z)

2450

10

90



715.704.900

PC 0800 25x50x10 NIR

1250

10

90

715.707.290

PC 0800 30x30x6 NIR

1250

10

90

715.707.300

PC 0800 30x75x16 NIR (Z)

1250

10

90

715.707.430

PC 0800 50x50x10 NIR

1350

10

90

715.707.610

PC 0800 50x110x16 NIR (Z)

1250

10

90

715.706.540

PC 0800 100x140x20 NIR (Z)

1250

10

90

715.706.530

PC 0800 110x110x16 NIR (Z)

1250

10

90

.

715.703.070

PC 0900 30x30x6 NIR

800

10

50

715.703.060

PC 0900 30x30x6 NIR

1032

8

90

715.704.600

PC 0900 30x30x6 NIR

1060

8

90

715.703.450

PC 0900 30x30x6 1350 nm

1350

8

90

715.703.130

PC 0900 30x30x6 1550 nm

1550

8

90

715.707.540

PC 0900 30x30x6 1950 nm

1950

10

90

715.703.210

PC 0900 30x64x10 1550 nm

1550

8

90

715.703.440

PC 0900 30x110x16 1350 nm

1350

8

90

715.703.090

PC 0900 30x110x16 1550 nm

1550

8

90

715.706.550

PC 0900 30x110x16 1950 nm

1950

10

90

715.704.340

PC 0900 50x50x10 NIR

1047

8

90

715.707.580

PC 0900 50x50x10 NIR

1200

8

90

715.703.550

PC 0900 50x50x10 1550 nm

1550

8

90

715.707.030

PC 0900 50x50x10 1950 nm (Z)

1950

10

90

715.707.020

PC 0900 50x110x16 NIR

800

10

50

715.707.040

PC 0900 50x110x16 1950 nm (Z)

1950

10

90

715.707.650

PC 0900 110x110x16 1550 nm (Z)

1550

10

90

715.706.440

PC 0900 120x140x20 1550 nm

1550

8

90



715.704.140

PC 1100 25x25x6 NIR

1550

8

90

715.707.420

PC 1100 30x30x6 NIR

1032

10

90

715.706.390

PC 1100 30x75x16 NIR

800

8

88

715.706.520

PC 1100 30x75x16 NIR (Z)

800

8

88

715.702.240

PC 1100 30x110x16 NIR

800

8

88

715.706.580

PC 1100 30x110x16 NIR (Z)

800

8

88

715.706.900

PC 1100 30x110x16 NIR

1550

8

90

715.705.180

PC 1100 50x50x10 NIR

800

8

88

715.703.200

PC 1100 50x50x10 NIR

1550

8

90

715.703.500

PC 1100 110x110x16 NIR

800

8

88



715.704.160

PC 1200 25x25x6 NIR

800

8

90

715.702.200

PC 1200 25x25x6 NIR

1047

8

90

715.701.120

PC 1200 30x30x6 NIR

800

8

90

715.703.770

PC 1200 30x30x6 NIR

1047

8

90

715.702.940

PC 1200 30x30x6 1550 nm

1550

8

90

715.701.200

PC 1200 30x64x10 NIR

800

8

90

715.703.410

PC 1200 30x64x10 1035 nm

1035

8

90

715.705.810

PC 1200 30x64x10 1550 nm

1550

8

90

715.700.550

PC 1200 30x110x16 NIR

800

8

90

715.702.950

PC 1200 30x110x16 NIR (Z)

800

8

90

715.702.740

PC 1200 30x110x16 NIR

1550

8

90

715.700.640

PC 1200 50x50x10 NIR

800

8

90

715.705.050

PC 1200 50x50x10 NIR (Z)

800

8

90

715.704.690

PC 1200 50x50x10 NIR

1053

8

90

715.707.590

PC 1200 50x50x10 NIR (Z)

1053

8

90

715.704.250

PC 1200 50x50x10 NIR

1250

8

90

715.702.150

PC 1200 58x58x10 NIR

800

8

90

715.703.930

PC 1200 58x58x10 NIR (Z)

800

8

90

715.703.700

PC 1200 58x58x10 NIR

1550

8

90

715.703.880

PC 1200 58x58x10 NIR (Z)

1550

8

90

715.700.620

PC 1200 64x64x10 NIR

800

8

90

715.700.630

PC 1200 50x110x16 NIR

800

8

90

715.701.320

PC 1200 50x110x16 NIR

800

14

90

715.702.910

PC 1200 50x110x16 NIR (Z)

800

8

90

715.705.600

PC 1200 50x110x16 NIR

1047

8

90

715.705.030

PC 1200 50x140x20 NIR

800

8

90

715.700.460

PC 1200 90x90x16 NIR

800

8

90

715.703.280

PC 1200 100x140x20 NIR

800

8

90

715.700.580

PC 1200 110x110x16 NIR

800

8

90

715.703.960

PC 1200 110x110x16 NIR (Z)

800

8

90

715.701.220

PC 1200 120x140x20 NIR

800

8

90

715.704.670

PC 1200 120x140x20 NIR (Z)

800

8

90

715.705.400

PC 1200 120x140x20 NIR

1053

8

90

715.707.210

PC 1200 120x140x20 NIR

1550

8

90



715.704.680

PC 1250 30x64x10 1040 nm

1040

8

90



715.703.190

PC 1400 25x25x6 NIR

800

8

90

715.707.310

PC 1400 25x50x10 NIR

800

8

90

715.702.620

PC 1400 30x30x6 NIR

800

12

90

715.700.720

PC 1400 30x110x16 NIR

800

15

90

715.701.760

PC 1400 30x110x16 NIR

800

8

90

715.707.010

PC 1400 40x140x20 NIR (Z)

800

15

90

715.702.840

PC 1400 50x50x10 NIR

800

8

90

715.703.990

PC 1400 50x50x10 NIR (Z)

800

8

90

715.707.510

PC 1400 50x50x10 NIR

1030

10

90

715.704.510

PC 1400 50x110x16 NIR

800

8

90

715.704.010

PC 1400 50x110x16 NIR (Z)

800

8

90

715.704.610

PC 1400 60x120x20 NIR

800

21

90

715.703.260

PC 1400 64x64x10 NIR

800

8

90

715.703.620

PC 1400 90x90x16 NIR

800

8

90

715.703.240

PC 1400 110x110x16 NIR

800

15

90

715.704.990

PC 1400 110x110x16 NIR (Z)

800

10

90

715.704.080

PC 1400 100x140x20 NIR

800

17

90

715.704.190

PC 1400 120x140x20 NIR

800

12

90

715.704.660

PC 1400 120x140x20 NIR (Z)

800

8

90



715.705.730

PC 1480 25x25x6 NIR

1053

10

90

715.704.030

PC 1480 50x50x10 NIR

765

20

89

715.707.330

PC 1480 50x50x10 NIR

1053

10

90

715.705.780

PC 1480 50x110x16 NIR

1053

10

90

715.706.150

PC 1480 58x58x10 NIR

800

10

90

715.707.100

PC 1480 60x140x20 NIR

800

10

90

715.703.750

PC 1480 60x140x20 NIR

1060

8

90

715.705.740

PC 1480 110x110x16 NIR

800

10

90

715.705.750

PC 1480 120x140x20 NIR

800

10

90

715.706.110

PC 1480 120x140x20 NIR (Z)

800

10

90

715.706.780

PC 1480 140x120x20 NIR (Z)

800

10

90

715.705.990

PC 1480 140x120x20 NIR

800

18

90

.



715.703.640

PC 1500 25x25x6 NIR

800

8

90

715.702.590

PC 1500 30x30x6 NIR

800

55

90

715.704.050

PC 1500 30x30x6 NIR

1030

8

90

715.703.860

PC 1500 30x64x10 NIR

800

8

90

715.706.220

PC 1500 30x64x10 NIR

1030

8

90

715.705.070

PC 1500 30x75x16 1030 nm

1030

8

90

715.701.470

PC 1500 30x110x16 800 nm

800

8

90

715.702.990

PC 1500 30x110x16 800 nm

800

26

90

715.706.330

PC 1500 30x110x16 NIR (Z)

800

30

90

715.703.110

PC 1500 30x110x16 1030 nm

1030

8

90

715.703.100

PC 1500 30x110x16 1030 nm (Z)

1030

8

90

715.704.120

PC 1500 50x50x10 NIR

800

13

90

715.703.980

PC 1500 50x50x10 NIR (Z)

800

13

90

715.701.380

PC 1500 50x110x16 800 nm

800

8

90

715.703.510

PC 1500 50x110x16 NIR (Z)

800

8

90

715.703.520

PC 1500 50x110x16 NIR (Z)

800

30

90

715.702.470

PC 1500 50x140x20 NIR

800

13

90

715.706.670

PC 1500 50x140x20 NIR (Z)

800

13

90

715.704.350

PC 1500 58x58x10 NIR

800

14

90

715.703.920

PC 1500 58x58x10 NIR (Z)

800

13

90

715.701.750

PC 1500 64x64x10 NIR

800

8

90

715.705.230

PC 1500 64x64x10 NIR (Z)

800

8

90

715.706.510

PC 1500 70x140x20 NIR

800

13

90

715.707.070

PC 1500 70x140x20 NIR (Z)

800

13

90

715.704.520

PC 1500 80x50x16 NIR

800

8

90

715.703.780

PC 1500 90x90x16 NIR

800

14

90

715.703.610

PC 1500 100x140x20 NIR

800

8

90

715.702.040

PC 1500 100x140x20 NIR

800

33

90

705.703.420

PC 1500 110x50x16 NIR

800

8

90

715.706.940

PC 1500 110x50x16 NIR (Z)

800

8

90

715.704.200

PC 1500 110x110x16 NIR

800

8

90

715.704.850

PC 1500 110x110x16 NIR (Z)

800

8

90

715.705.480

PC 1500 110x110x16 NIR

800

30

90

715.701.660

PC 1500 120x140x20 NIR

800

8

90

715.703.950

PC 1500 120x140x20 NIR (Z)

800

13

90

715.705.620

PC 1500 120x140x20 NIR

800

30

90



715.704.430

PC 1600 25x25x6 NIR

800

8

90

715.705.220

PC 1600 30x30x6 NIR

800

8

90

715.704.150

PC 1600 30x64x10 NIR

800

8

90

715.704.870

PC 1600 30x75x16 NIR

800

15

90

715.700.350

PC 1600 30x110x16 NIR

800

15

90

715.704.440

PC 1600 50x50x10 NIR

750

20

90

715.707.090

PC 1600 50x50x10 NIR (Z)

800

13

90

715.707.140

PC 1600 50x110x16 NIR

800

10

90

715.704.880

PC 1600 50x110x16 NIR (Z)

800

15

90

715.705.440

PC 1600 64x64x10 NIR

1064

10

90

715.705.110

PC 1600 110x110x16 NIR (Z)

800

8

90

715.704.320

PC 1600 110x110x16 NIR

1053

10

90

715.704.420

PC 1600 120x140x20 NIR

800

8

90



715.704.560

PC 1700 25x25x6 NIR

800

8

90

715.706.240

PC 1700 30x30x6 NIR

800

8

90

715.702.400

PC 1700 30x30x6 NIR

1053

10

90

715.702.960

PC 1700 30x64x10 NIR

800

30

90

715.702.970

PC 1700 30x64x10 VIS

633

30

79

715.705.190

PC 1700 30x64x10 NIR

1053

10

90

715.707.180

PC 1700 30x110x16 NIR (Z)

1035

10

90

715.706.680

PC 1700 30x110x16 NIR (Z)

1053

10

90

715.703.670

PC 1700 50x50x10 NIR

1040

10

90

715.702.650

PC 1700 50x110x16 NIR

1040

10

90

715.701.680

PC 1700 64x64x10 800 nm

800

8

90

715.703.230

PC 1700 64x64x10 1053 nm

1053

10

90

715.705.420

PC 1700 120x140x20 NIR

1053

10

90



715.705.680

PC 1740 30x30x6 NIR

1053

8

90

715.705.910

PC 1740 30x64x10 NIR (Z)

1053

8

90

715.705.690

PC 1740 30x110x16 NIR

1053

8

90

715.706.590

PC 1740 50x50x10 NIR (Z)

1060

8

90

715.705.800

PC 1740 50x50x10 NIR

1053

8

90

715.704.570

PC 1740 50x110x16 NIR (Z)

1040

11

90

715.707.060

PC 1740 50x140x20 NIR (Z)

1030

10

90

715.706.020

PC 1740 64x30x10 NIR (Z)

1053

8

90

715.705.920

PC 1740 64x64x10 NIR (Z)

1053

8

90

715.701.880

PC 1740 64x64x10 NIR

1053

8

90

715.705.840

PC 1740 100x140x20 NIR

1057

8

90

715.707.050

PC 1740 110x110x16 NIR (Z)

1018

10

90

715.705.830

PC 1740 110x110x16 NIR

1057

8

90

715.707.080

PC 1740 120x140x20 NIR (Z)

1030

10

90

715.704.070

PC 1740 120x140x20 NIR (Z)

1054

14

90

715.704.100

PC 1740 120x140x20 NIR

1054

14

90



715.701.070

PC 1800 15x15x6 NIR

800

8

90

715.705.540

PC 1800 15x30x6 NIR

800

8

90

715.704.130

PC 1800 25x25x6 NIR

800

8

90

715.701.140

PC 1800 30x30x6 NIR

800

8

90

715.702.510

PC 1800 30x30x6 NIR

1030

8

90

715.704.180

PC 1800 30x30x6 NIR

1047

8

90

715.703.690

PC 1800 30x64x10 NIR

800

8

90

715.702.520

PC 1800 30x64x10 NIR

1030

8

90

715.703.120

PC 1800 30x64x10 1060 nm

1060

8

85

715.703.010

PC 1800 30x110x16 800 nm

800

17

90

715.700.450

PC 1800 30x110x16 NIR

800

8

90

715.705.250

PC 1800 30x110x16 NIR (Z)

800

8

90

715.702.530

PC 1800 30x110x16 NIR

1030

8

90

715.704.170

PC 1800 30x110x16 NIR

1047

8

90

715.700.800

PC 1800 50x50x10 NIR

800

8

90

715.704.110

PC 1800 50x50x10 NIR (Z)

800

8

90

715.704.280

PC 1800 50x50x10 NIR

1030

8

90

715.704.490

PC 1800 50x50x10 NIR

1064

8

85

715.700.600

PC 1800 50x110x16 NIR

800

8

90

715.703.020

PC 1800 50x110x16 800 nm

800

16

90

715.703.570

PC 1800 50x110x16 NIR (Z)

800

16

90

715.704.290

PC 1800 50x110x16 NIR

1030

8

90

715.704.370

PC 1800 50x110x16 NIR

1053

8

82

715.705.160

PC 1800 50x140x20 NIR

800

8

90

715.704.540

PC 1800 50x140x20 NIR

1030

8

90

715.700.560

PC 1800 64x64x10 NIR

800

8

90

715.704.380

PC 1800 64x64x10 NIR

1053

8

82

715.704.220

PC 1800 100x140x20 NIR

800

8

90

715.700.590

PC 1800 110x110x16 NIR

800

8

90

715.704.410

PC 1800 110x110x16 NIR

1054

8

82

715.701.150

PC 1800 120x140x20 NIR

800

8

90

715.703.820

PC 1800 120x140x20 NIR (Z)

800

8

90



715.703.270

PC 2000 25x25x6 NIR

800

8

90

715.701.920

PC 2000 30x30x6 NIR

800

8

90

715.701.040

PC 2000 30x30x6 800 nm

800

8

90

715.700.470

PC 2000 30x64x10 NIR

800

8

90

715.701.580

PC 2000 30x75x16 800 nm

800

8

90

715.700.570

PC 2000 30x110x16 NIR

800

15

90

715.700.920

PC 2000 30x110x16 NIR

800

8

90

715.700.820

PC 2000 50x50x10 NIR

800

8

90

715.701.330

PC 2000 50x110x16 NIR

800

8

90

715.703.800

PC 2000 50x110x16 NIR (Z)

800

8

90

715.703.630

PC 2000 50x110x16 NIR (Z)

800

23

88

715.702.600

PC 2000 58x58x10 NIR

950

8

90

715.700.830

PC 2000 64x64x10 NIR

800

8

90

715.704.230

PC 2000 100x140x20 NIR

800

8

90

715.704.270

PC 2000 110x110x16 NIR

800

8

90

715.701.710

PC 2000 120x140x20 NIR

800

8

90



715.705.280

PC 2100 25x25x6 NIR

800

8

90

715.703.480

PC 2100 30x30x6 NIR

800

8

90

715.703.040

PC 2100 30x64x10 NIR

800

8

90

715.701.650

PC 2100 30x110x16 NIR

800

8

90

715.702.260

PC 2100 50x50x10 NIR

800

8

90

715.702.250

PC 2100 50x110x16 NIR

800

8

90



715.704.360

PC 2200 25x25x6 NIR

800

8

90

715.701.970

PC 2200 30x30x6 NIR

800

8

90

715.705.120

PC 2200 30x64x10 NIR

800

8

90

715.701.230

PC 2200 30x110x16 NIR

800

8

90

715.703.360

PC 2200 50x50x10 NIR

765

16

90

715.701.630

PC 2200 50x50x10 NIR

800

8

90

715.703.370

PC 2200 50x110x16 NIR

765

16

90

715.701.530

PC 2200 50x110x16 NIR

800

8

90

715.703.810

PC 2200 50x110x16 NIR (Z)

800

8

90

715.703.580

PC 2200 50x110x16 NIR (Z)

800

15

88

715.703.350

PC 2200 100x140x20 NIR

800

8

90

715.703.540

PC 2200 100x140x20 NIR

800

13

90

715.702.560

PC 2200 100x140x20 NIR

800

21

85

715.700.650

PC 2200 110x110x16 NIR

800

8

90

715.703.910

PC 2200 120x140x20 NIR

800

13

90



715.704.580

PC 2300 25x25x6 NIR

800

8

88

715.702.850

PC 2300 30x30x6 NIR

800

8

88

715.702.190

PC 2300 30x64x10 NIR

800

8

88

715.701.450

PC 2300 30x110x16 NIR

800

15

88

715.702.800

PC 2300 50x50x10 NIR

800

8

88



715.701.990

PC 2400 30x30x6 NIR

800

8

87

715.701.980

PC 2400 30x64x10 NIR

800

8

87

715.701.350

PC 2400 30x110x16 NIR

800

8

87

715.701.340

PC 2400 50x50x10 NIR

800

8

87

715.707.640

PC 2400 58x58x10 NIR

800

8

87





上海屹持光电技术有限公司

为你推荐

产品 文章

  • SSFS飞秒激光孤子自频移波长调谐技术2024-07-02 09:17

    SSFS孤子自频移飞秒激光波长调谐模块利用SSFS孤子自频移现象（Soliton self-frequency shift ），允许用户在近红外范围内对飞秒激光进行波长调谐。通常，来自固定波长掺铒飞秒光源的孤子可以从1550 nm范围调谐到2100 nm波长。通过改变输入光功率，可以很容易地调谐输出波长。波长偏移输出信号保持相干性和线性极化。模块完全即插即用
    2076浏览量

  • 1.5μ超紧凑型单次自相关仪正式上市2024-06-17 16:08

    µ-ROC紧凑型单次自相关仪现已推出 1.5 µm新版本，光谱范围覆盖1300-1700nm，专用于掺铒飞秒激光器。至此µ-ROC已经可以覆盖传统800nm、1um、1.5um波段，用户可以根据自身需求灵活选择。µ-ROC同样配备STAR Software专用软件，用户终身可以通过自动更新轻松免费地访问最新软件版本。
    1505浏览量

  • 近距离了解中红外可调谐光纤飞秒激光器 Femtum Ultratune 3400性能2024-06-17 14:26

    中红外可调谐光纤飞秒激光器UltraTune 3400是一款商业中红外超快激光器，其结构紧凑、免维护和可调谐激光系统是科学研究的理想工具。
    2236浏览量

  • 可输出不同偏振太赫兹波的光电导天线2024-05-14 11:21

    屹持光电推出的大面积光电导天线辐射源，具有不同的极化类型，并且具有激发面积大，转换效率高的优点。该系列太赫兹光电导天线最显著的特点是：除了通常的线性极化外，还可以产生径向或者方位偏振的太赫兹辐射。径向极化辐射特别适合比如使用线波导进行传输的应用。用飞秒激光脉冲激发的光电导发射器是广泛使用的单周期太赫兹（THz）辐射脉冲源。通过应用交叉电极几何形状，可以显著提
    2015浏览量
