数据： TPS6303x High Efficiency Single Inductor Buck-Boost Converter With 1-A Switches 数据表
TPS6303x器件为由两节或三节碱性电池，镍氢电池或镍氢电池供电的产品提供电源解决方案，电池锂离子或锂聚合物电池。使用单节锂离子或锂聚合物电池时，输出电流可高达600 mA，并将其放电至2.5 V或更低。降压 - 升压转换器基于固定频率，脉冲宽度调制（PWM）控制器，使用同步整流来获得最大效率。在低负载电流时，转换器进入省电模式，以在宽负载电流范围内保持高效率。可以禁用省电模式，强制转换器以固定的开关频率运行。开关中的最大平均电流限制为1000 mA的典型值。输出电压可使用外部电阻分压器进行编程，或在芯片内部固定。可以禁用转换器以最大限度地减少电池消耗。在关机期间，负载与电池断开连接。
TPS6303x器件可在-40°C至85°C的自由空气温度范围内工作。这些器件采用10引脚VSON封装，尺寸为2.5 mm×2.5 mm（DSK）。
| Topology |
| Vin (Min) (V) |
| Vin (Max) (V) |
| Vout (Min) (V) |
| Vout (Max) (V) |
| Switch Current Limit (Typ) (A) |
| Duty Cycle (Max) (%) |
| Switching Frequency (Min) (kHz) |
| Switching Frequency (Max) (kHz) |
| Iq (Typ) (mA) |
| Features |
| Iout (Max) (A) |
| Operating Temperature Range (C) |
| Rating |
| Package Group |
| TPS63030 | TPS63000 | TPS63000-Q1 | TPS63010 | TPS63020 | TPS63020-Q1 | TPS63036 | TPS63070 |
|---|---|---|---|---|---|---|---|
| Buck/Boost | Buck/Boost | Buck/Boost | Buck/Boost | Buck/Boost | Buck/Boost | Buck/Boost | Buck/Boost |
| 1.8 | 1.8 | 1.8 | 2 | 1.8 | 1.8 | 1.8 | 2 |
| 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 16 |
| 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 2.5 |
| 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 9 |
| 1 | 1.8 | 1.8 | 2.2 | 4 | 4 | 1 | 3.6 |
| 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| 2200 | 1250 | 1250 | 2200 | 2200 | 2200 | 2200 | 2100 |
| 2600 | 1500 | 1500 | 2400 | 2600 | 2600 | 2600 | 2800 |
| 0.025 | 0.04 | 0.04 | 0.04 | 0.05 | 0.05 | 0.025 | 0.05 |
| Enable Frequency Synchronization Light Load Efficiency Load Disconnect Synchronous Rectification UVLO Fixed | Enable Frequency Synchronization Light Load Efficiency Load Disconnect Synchronous Rectification UVLO Fixed | Enable Frequency Synchronization Light Load Efficiency Load Disconnect Synchronous Rectification UVLO Fixed | Dynamic Voltage Scaling Enable Frequency Synchronization Light Load Efficiency Load Disconnect Synchronous Rectification UVLO Fixed | Enable Frequency Synchronization Light Load Efficiency Load Disconnect Power Good Synchronous Rectification UVLO Fixed | Enable Frequency Synchronization Light Load Efficiency Load Disconnect Power Good Synchronous Rectification UVLO Fixed | Enable Frequency Synchronization Light Load Efficiency Load Disconnect Synchronous Rectification UVLO Fixed | Dynamic Voltage Scaling Enable Frequency Synchronization Light Load Efficiency Load Disconnect Output Discharge Power Good Synchronous Rectification UVLO Fixed Voltage Margining |
| 0.5 | 0.8 | 0.8 | 0.8 | 2 | 2 | 0.5 | 2 |
| -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 125 | -40 to 85 | -40 to 125 |
| Catalog | Catalog | Automotive | Catalog | Catalog | Automotive | Catalog | Catalog |
| SON | VSON | VSON | DSBGA | VSON | VSON | DSBGA | VQFN-HR |

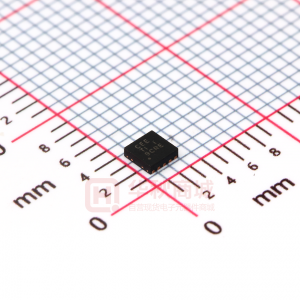

型号：TPS63030DSKR 封装：WSON10_EP
品牌：TI 描述：降压-升压型1降压升压1.2V~5.5V 1.8V~5.5V900mA 2.4MHz SON-10-EP（2.5x2.5）DC-DC转换器ROHS
